Description

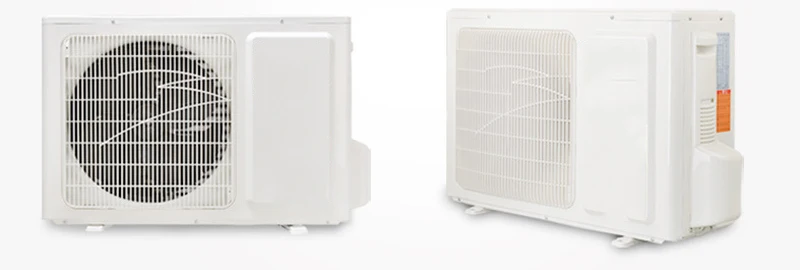

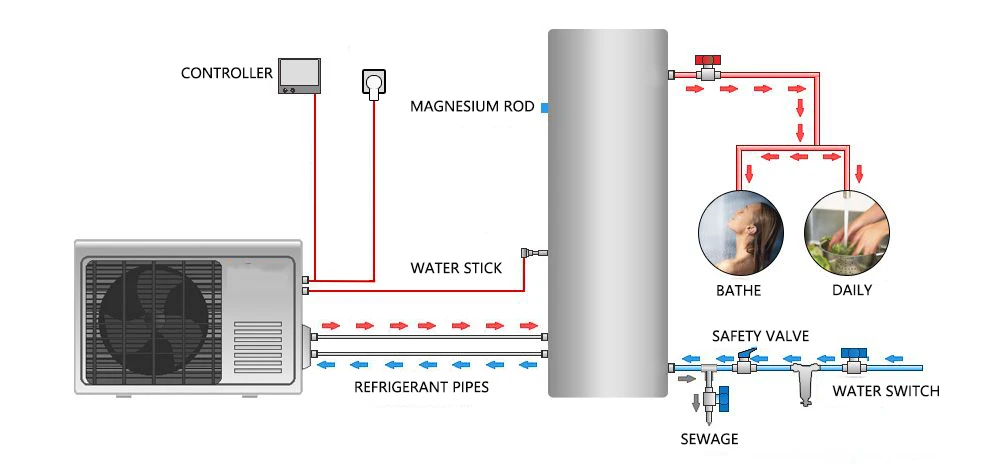

The refrigerant circle domestic split heat pump adopts refrigerant circle the water tank to heat water, outdoor and indoor split design, no water system outside, any freezing and damage to water system. The compact design with small dimension makes the heat pump convenient to be delivered, stored and installed at any place. Suitable for family, villa, office, and restaurant and hotel.

Features

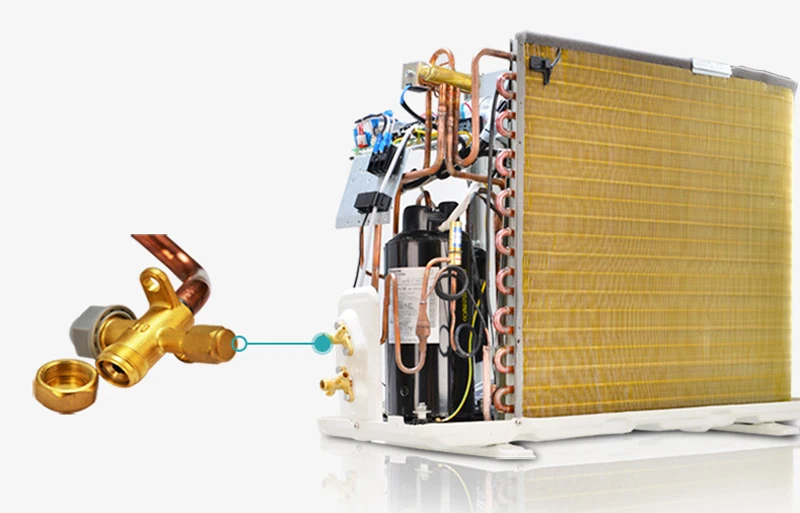

● Fast water heating at temperatures up to 60°C. ● Mitsubishi or Panasonic Rotary type compressor, low vibration, low noise and high reliability. ● Multifunction LCD wired controller. ● Durable, long life time up to 15 years, extremely low maintenance cost. ● High efficiency up to COP 4.5, saving 75% energy compare to tradition electric heater. ● Automatically defrosting. ● Simple installation: Rooftop, balcony, yard or basement can be suitable places for the installation.

Details Images

Technical Data

Product Specification

Model	KQN-100L	KQN-150L	KQN-200L	KQN-260L	KQN-300L	KQN-400L	KQN-500L
Type	F-1P	F-1P	F-1P	F-1.5P	F-1.5P	F-2P	F-2P
Size (LWH）	780260530mm	780260530mm	780260530mm	780260530mm	780260530mm	840290610mm	840290610mm
Compressor	Panasonic (2P17S225ANQ)	Panasonic (2P17S225ANQ)	Panasonic (2P17S225ANQ)	Panasonic (2K22S225BUA)	Panasonic (2K22S225BUA)	Panasonic (2V32S225AUA)	Panasonic (2V32S225AUA)
Rated Power	900W	900W	900W	1350W	1350W	1800W	1800W
Heating capacity	3700W	3700W	3700W	4900W	4900W	6800W	6800W
Hot water production	80L/h	80L/h	80L/h	120L/h	120L/h	160L/h	160L/h
Refrigerant	R22	R22	R22	R22	R22	R22	R22
Max water output temperature	60℃	60℃	60℃	60℃	60℃	60℃	60℃
Net weight	27kg	27kg	27kg	34kg	34kg	44kg	44kg
Accessory	connection pipe（9.5*6.3) plug etc.	connection pipe（9.5*6.3) plug etc.	connection pipe（9.5*6.3) plug etc.	connection pipe（9.5*6.3) plug etc.	connection pipe（9.5*6.3) plug etc.	connection pipe（9.5*6.3) plug etc.	connection pipe（9.5*6.3) plug etc.
Water tank dimension	φ470*1020mm	φ470*1440mm	φ500*1540mm	φ570*1560mm	φ570*1720mm	φ700*1520mm	φ700*1940mm
Inner tank material and thickness	SUS304/1.0mm	SUS304/1.0mm	SUS304/1.2mm	SUS304/1.2mm	SUS304/1.2mm	SUS304/1.5mm	SUS304/1.5mm
Outer tank material and thickness	colorful steel/0.45mm	colorful steel/0.45mm	colorful steel/0.45mm	colorful steel/0.45mm	colorful steel/0.45mm	colorful steel/0.45mm	colorful steel/0.45mm
Insulation layer	PU foam 50mm	PU foam 50mm	PU foam 50mm	PU foam 50mm	PU foam 50mm	PU foam 50mm	PU foam 50mm
Stainless steel 316 coil	φ9.5/18m	φ9.5/18m	φ9.5/21m	φ9.5/28m	φ9.5/28m	φ9.5/40m	φ9.5/40m
Caliber	DN15(G1/2")	DN15(G1/2")	DN15(G1/2")	DN15(G1/2")	DN20(G3/4")	DN20(G3/4")	DN20(G3/4")
Accessory	check valve, MG bar	check valve, MG bar	check valve, MG bar	check valve, MG bar	check valve, MG bar	check valve, MG bar	check valve, MG bar

100L Commercial Energy Saving Hot Water Heat Pump Water Heater

100L Commercial Energy Saving Hot Water Heat

Main Quality This model offers a compact, energy-efficient air source heat pump water heater solution for commercial and residential hot water applications. Designed with a 100L storage tank, it combines high-performance Panasonic rotary compressors, durable SUS304 stainless steel construction, and 50mm PU foam insulation to ensure long-lasting reliability and maximum energy savings.

Description The 100L commercial energy-saving hot water heat pump water heater operates via solar-assisted air source technology. It features a freestanding installation design, suitable for private homes, hotels, garages, and other commercial uses. Built with stainless steel housing and an internal SUS304 tank, this product ensures corrosion resistance and hygiene. With a rated power of 900W and a heating capacity of 3.7kW, it delivers hot water at up to 60°C with high efficiency (COP up to 4.5). This unit includes multiple protection mechanisms, fast heating, and defrosting features, providing consistent performance in varied climates.
